ALIF: How to Backup an AIM Manager

Overview

 Note
A backup does not contain the network settings. Its contents can not be modified.

An AIM Backup allows you to take a snapshot of the configuration and restore it should you require at a later date. The schema has been designed so that it can be restored to different firmware versions.

A backup of an AIM Manager can be taken acquired in different ways.

  • Manually downloaded using the Web interface.
  • Automatically scheduled which is either:
    • Stored locally on the AIM
    • Sent via email if configured


Manual Download

[+] AIM v5.x and below
[-] AIM v6.x
  • Open a web browser and log into the AIM’s web interface.
  • From the Side Menu, choose System Care and then Backup.

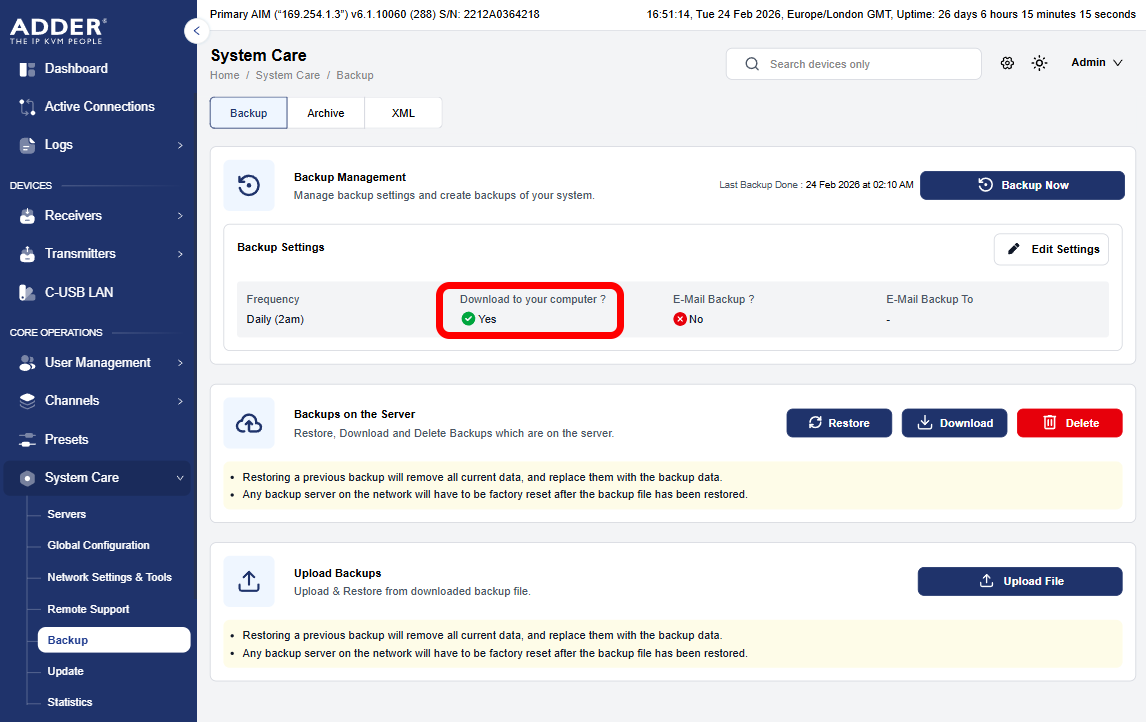

  • Check to see if Download to your Computer is set to Yes

    BackupRestore9

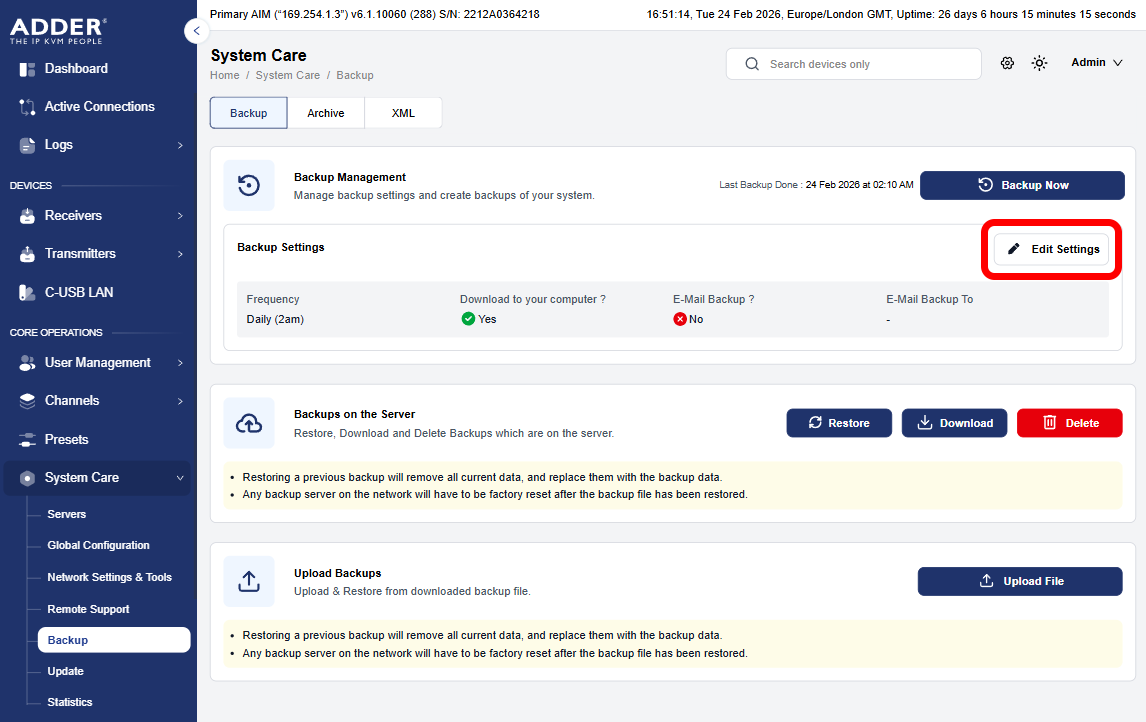

    • If not, you will need to click on the Edit Settings button

      BackupRestore7

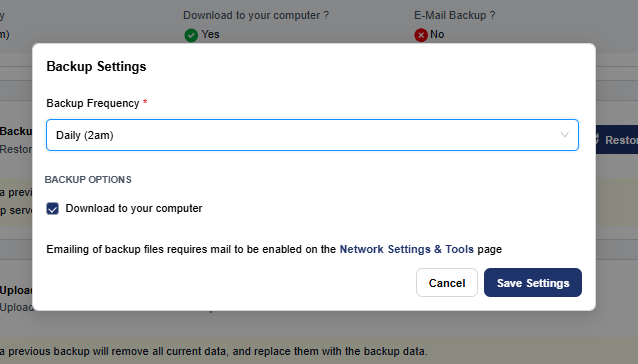

    • In the Backup Settings window, tick the check box for Download to your computer to enable downloading.

      BackupRestore8

    • Click on Save Settings to commit the change.

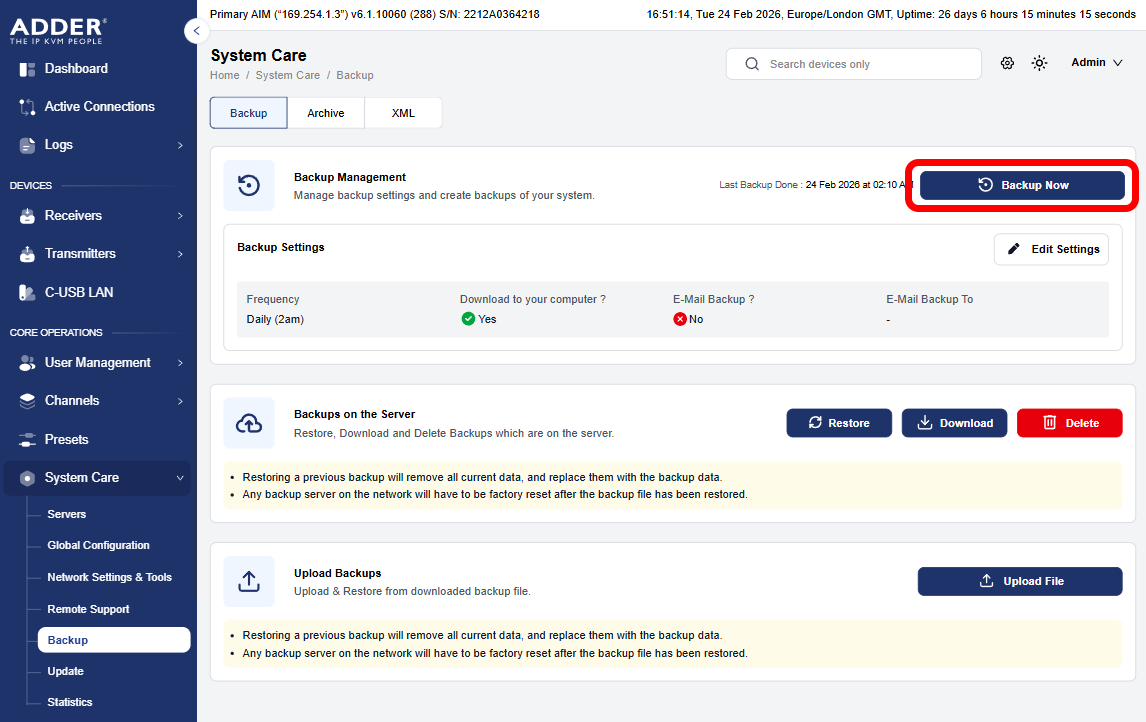

  • Click on the Backup Now button.

    BackupRestore6

  • An AIM backup file will automatically download to your computer.

Automatic Backup

[+] AIM v5.x and below
[-] AIM v6.x

You can configure the AIM to automatically store a backup locally, and if configured, send a copy to a specified email address.

  • From the Side Menu, choose System Care and then Backup.
  • Click on the Edit Settings button.

    BackupRestore7

  • A dialog will appear with options to choose the Backup Frequency and enable or disable Downloading a backup file to your computer.
  • The Backup Frequency drop down allows to you choose either Never, Hourly, Daily 2am (Default), Weekly Sunday 3am.
  • Ticking Download to your computer allows you to download a backup of the AIM to your computer when you press Backup Now on the main Backup page.
  • The email address is configured on the Network Settings & Tools page. There is a link to this page in the dialog window.

    BackupRestore8

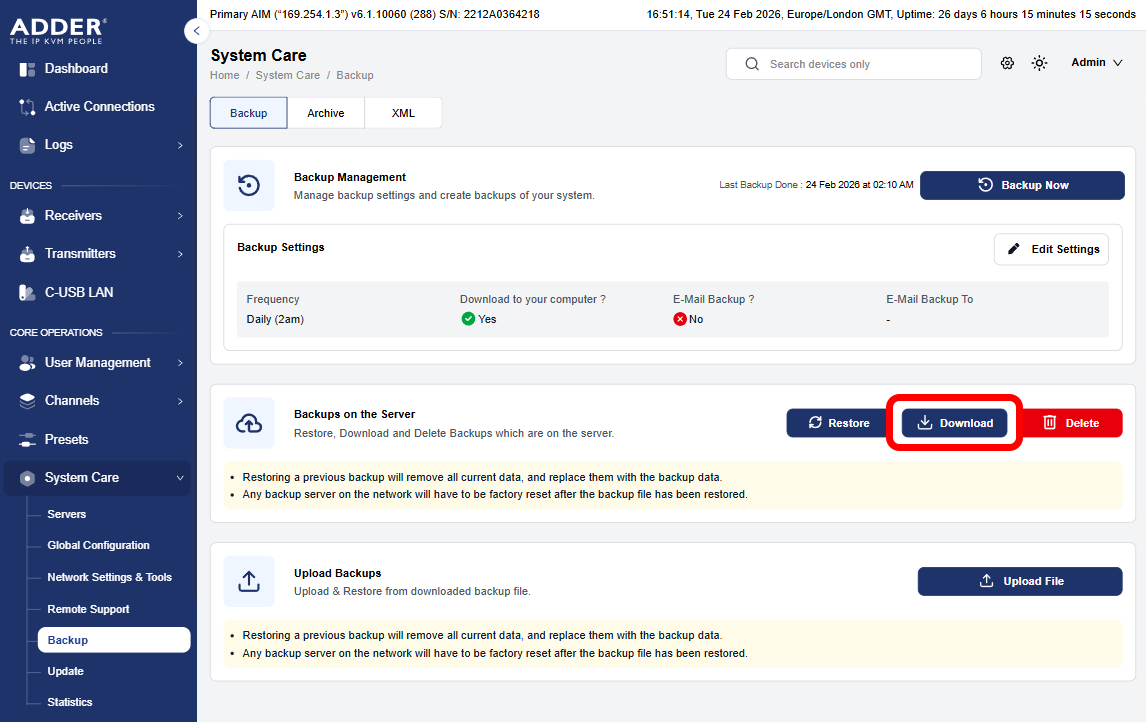

  • You can download any of the locally stored AIM Backups to your computer by choosing one from the dropdown list and pressing the Download button below.

    BackupRestore10

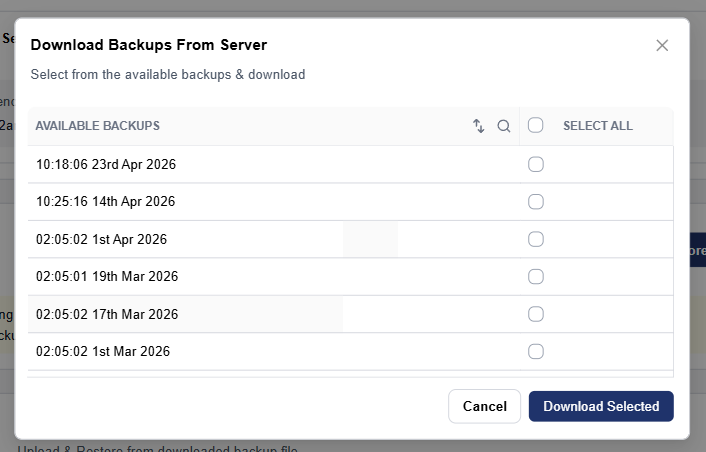

  • In the Download Backups From the Server window, you will be presented with a list of archieved Backups from which to download. You can select one or more of the Backup files. Click Download Selected to retrieve the files.

    BackupRestore11
