Overview

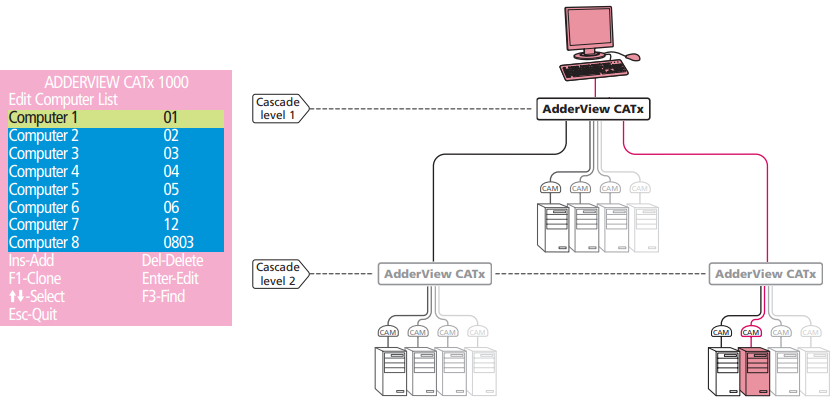

The CATX1000 and CATX5000 series are compatible systems. The switches have a cascade feature that allows the master unit to maintain a single OSD detailing a list of computers at the level of the master and slave positions for easy selection.
Note
The CATX4000 series (AVX4016, AVX4024, AVX4016IP, AVX4024IP) are not compatible with the cascade function on the CATX1000 or CATX5000 series switches.
Cascadablity table
| Master | Slave | Cascadable | Note |
| AVX5016IP | AVX5016IP | ✓ | USB CAM from Master connects to the Slave console port |
| AVX5016IP | AVX1008 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX5016IP | AVX1016 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX5016IP | AVX1008IP | ✗ | Not Compatible |
| AVX5016IP | AVX1016IP | ✗ | Not Compatible |
| AVX1008IP | AVX1008IP | ✗ | Not Compatible |
| AVX1008IP | AVX1016IP | ✗ | Not Compatible |
| AVX1016IP | AVX1008IP | ✗ | Not Compatible |
| AVX1016IP | AVX1016IP | ✗ | Not Compatible |
| AVX1008IP | AVX1008 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX1008IP | AVX1016 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX1016IP | AVX1008 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX1016IP | AVX1016 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX1008 (Non-IP) | AVX1008 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX1008 (Non-IP) | AVX1016 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX1016 (Non-IP) | AVX1008 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
| AVX1016 (Non-IP) | AVX1016 (Non-IP) | ✓ | CATX cable from a Computer Port on the Master connects to the front of Slave |
