ALIF: How to apply the AIM Licence

Out of the box, the AIM Manager supports up to 24 endpoints (Transmitters and Receivers). To support more endpoints, you must purchase an additional license which comes in different sizes of 48, 96, 192, 288 and unlimited. This can be purchased through the same sales channel.

The license is not specific to an AIM role, such as a Primary or Backup, it is only for the number of endpoints that it supports.

Note

If you are using two or more AIM Managers, for example, a Primary and Backup you need to ensure that each AIM has the same number of endpoints on its licence.

Licence Certificate

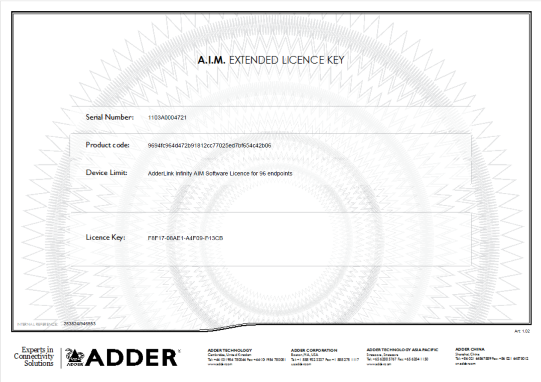

When you purchase an endpoint license, you will be given a certificate that looks something like:-
Infinity LicenceCertificate

It contains the following information:

Serial Number: This is the serial number of the AIM Manager the license key has been generated for.
Product code: Each AIM Manager has a unique identification code.
Device Limit: This is a description of the licence that has been purchased.
License Key: The key that activates the purchased licence.

Applying the Licence

[+] AIM v5.x and below

[-] AIM v6.x

The instructions for applying the license on AIM v6.x are presented in two sections: one for an unconfigured AIM and one for an already configured AIM.

Unconfigured AIM

Open the AIM's web interface.
From the Side Menu, click on Configure AIM
Click the Start Configuration button to begin.

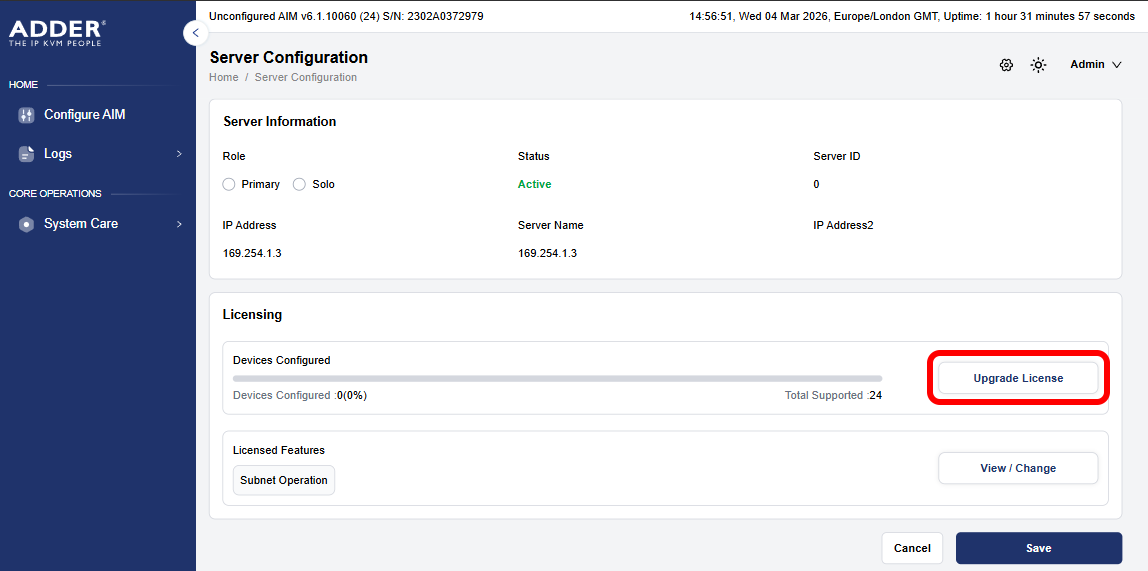

In the Server Configuration page, click on Upgrade License

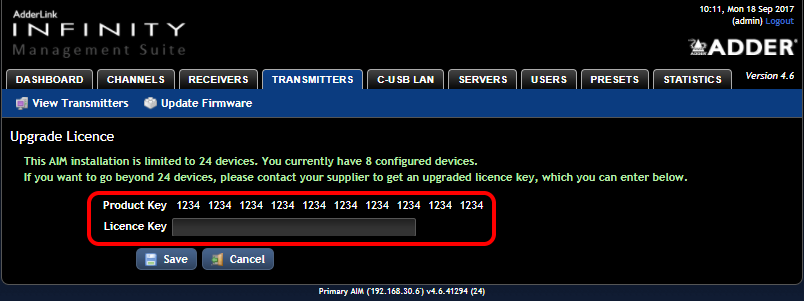

In the Upgrade Licence dialog, you will see a Product Key. This should be the same as the Product Code that is shown on the Certificate but includes spaces to make it easier to read. If these do not match then the license key was not generated for this AIM Manager.
In the Licence Key text box, enter the licence key that is shown on the certificate, including the dashes (-).
Press Save to apply the licence key.

Configured AIM

Open the AIM's web interface.

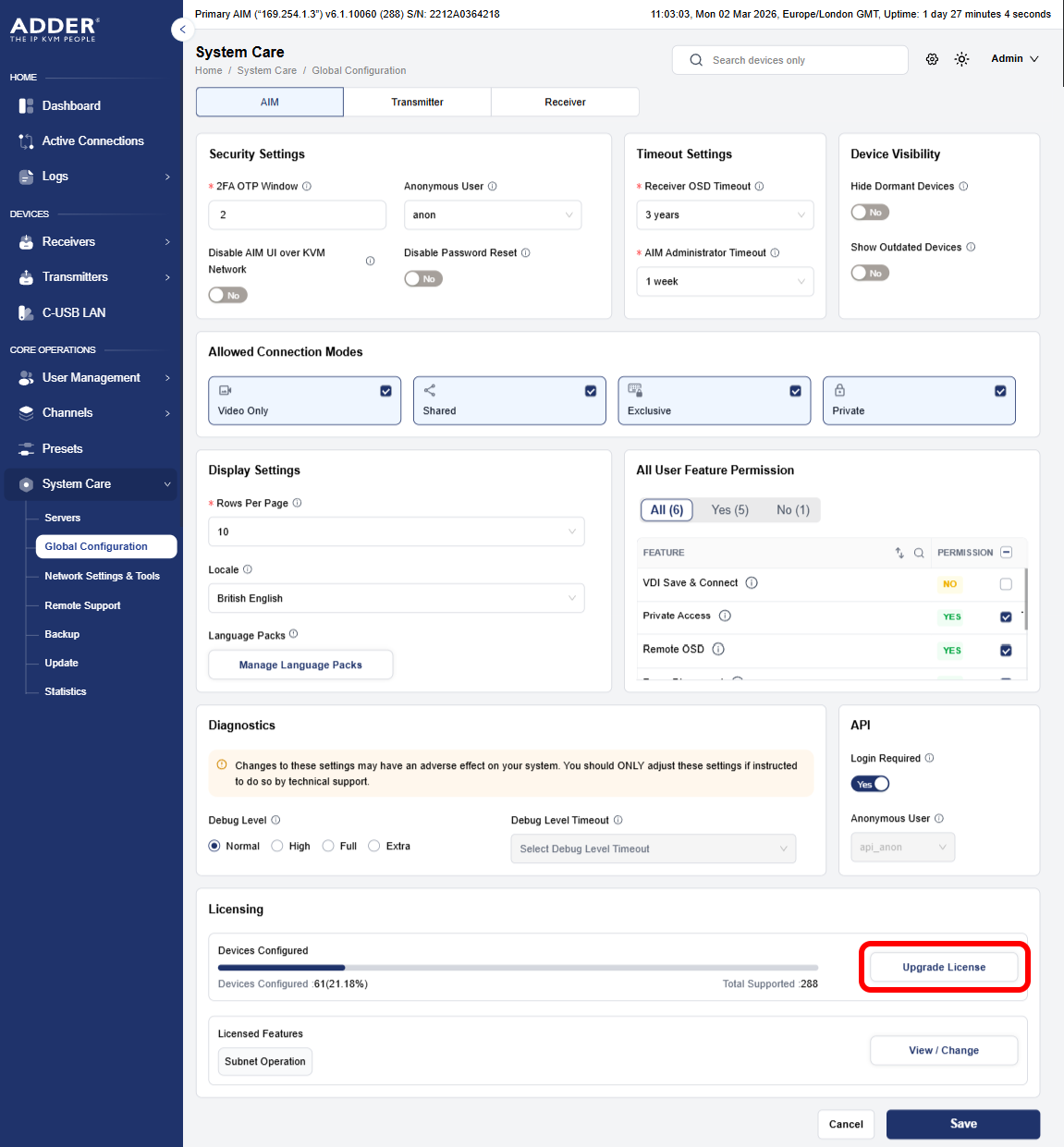

From the Side Menu, click on System Care and choose Global Configuration
In the Licensing section, click on the Upgrade License button.

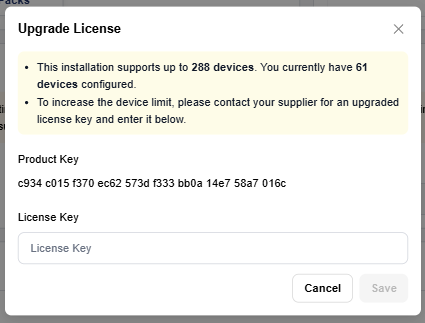

In the Upgrade Licence dialog, you will see a Product Key. This should be the same as the Product Code that is shown on the Certificate but includes spaces to make it easier to read. If these do not match then the license key was not generated for this AIM Manager.
In the Licence Key text box, enter the licence key that is shown on the certificate, including the dashes (-).
Press Save to apply the licence key.

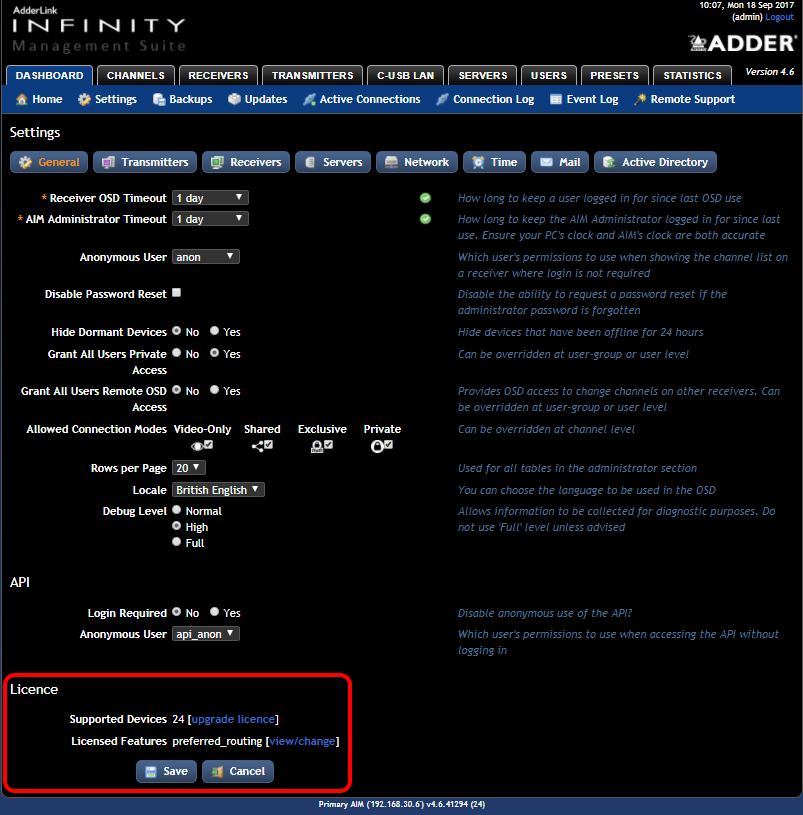

Checking the Licence

[+] AIM v5.x and below

[-] AIM v6.x

Open the AIM's web interface.
From the Side Menu, click on System Care and choose Global Configuration

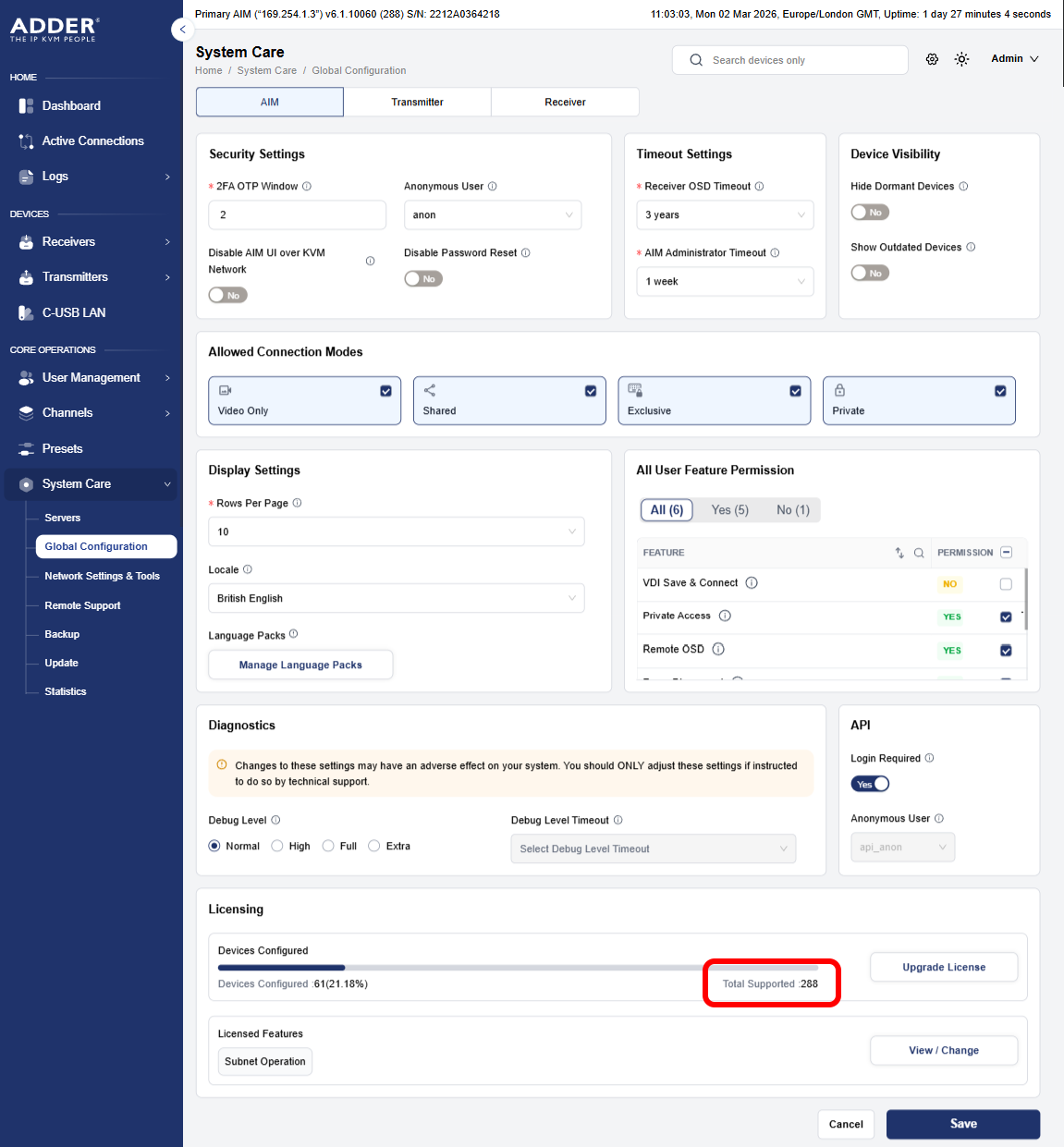

In the Licensing section, you will the number of device configured, and the total number of devices supported by the license. In the example, below the AIM has an 288 endpoint license.

Upgrading Licenses

When upgrading the licenses on an existing system, you must purchase and upgrade the licences on all the AIM Managers. To upgrade the licence on the Primary AIM Manager, simply follow the Applying the Licence in the section above.

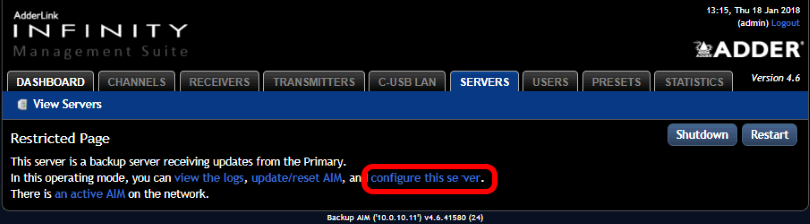

To upgrade an existing Backup or Satellite AIM

[+] AIM v5.x and below

[-] AIM v6.x

Open the AIM's web interface.

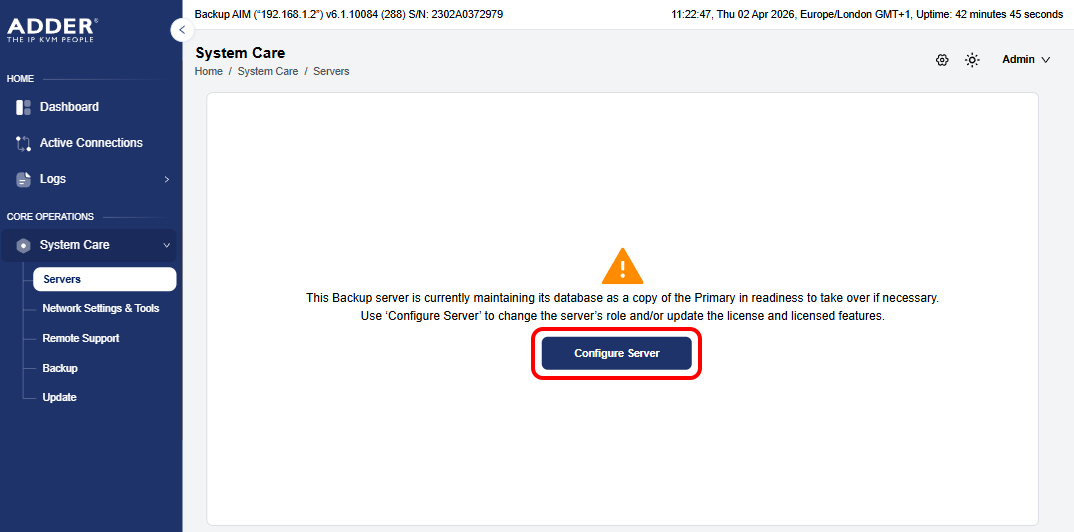

From the Side Menu, click on System Care and choose Servers
Click on the Configure Server button.

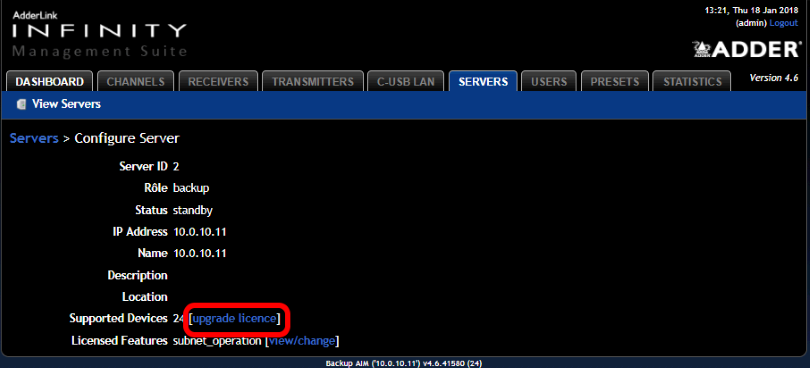

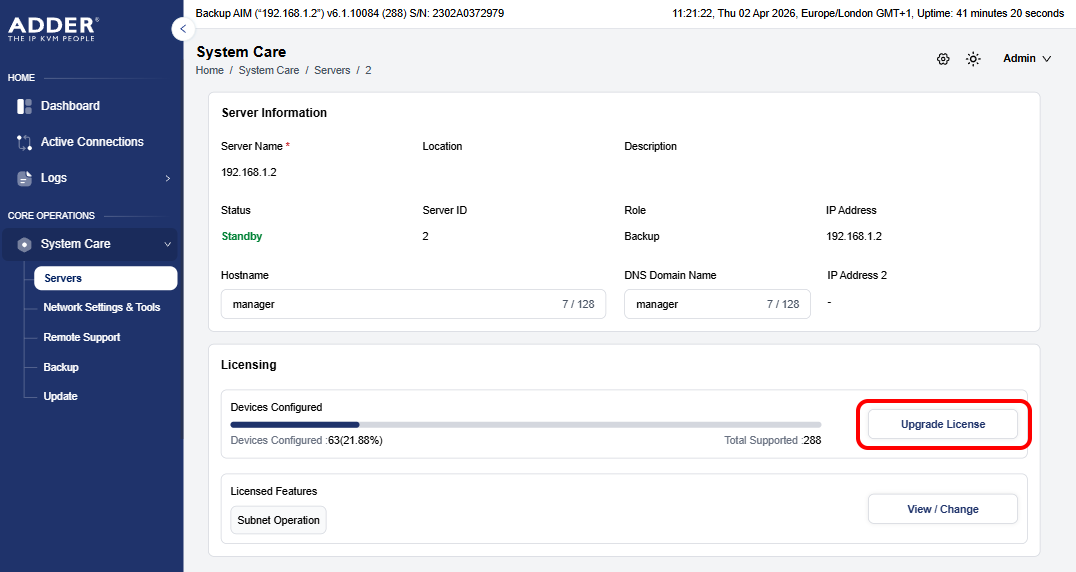

In the Server configuration page, click on Upgrade License
In the Upgrade Licence dialog, you will see a Product Key. This should be the same as the Product Code that is shown on the Certificate but includes spaces to make it easier to read. If these do not match then the license key was not generated for this AIM Manager.
In the Licence Key text box, enter the licence key that is shown on the certificate, including the dashes (-).
Press Save to apply the licence key.
