ALIF: Endpoints (Transmitters and Receivers)

ADDERLink INFINITY transmitters and receivers are a high-performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature-controlled environment, isolated from the user work station. Configurable by the user to fit their requirements these units guarantee pixel perfect, minimal lag ‘at-the-PC’ experience across distances of up to 10KM. Equipped with DVI-D/DisplayPort and USB, Audio and RS232, INFINITY provides flexibility to suit your specific application. They can be used as a point-to-point extender, or integrated into a wider matrix when combined with the ADDERLink INFINITY Manager (A.I.M.).

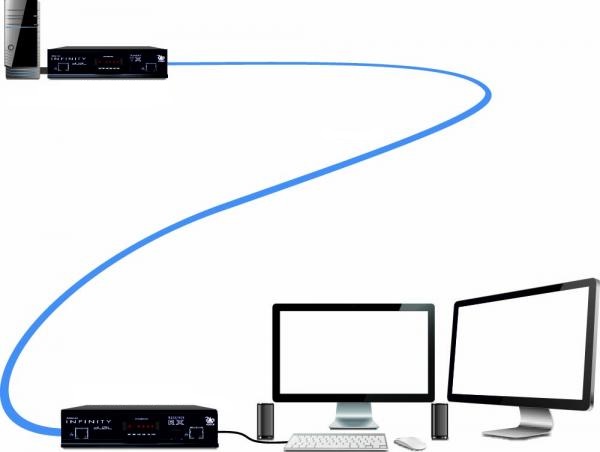

ALIF2020 Diag Pointtopoint AIM Main Diag V1 2a 0

ALIF1000 ALIF1002 ALIF2000 ALIF2020 ALIF2112 ALIF100T ALIF4000 ALIF3000

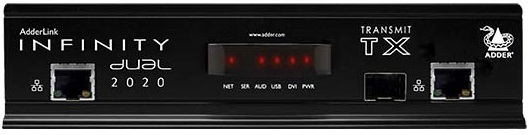

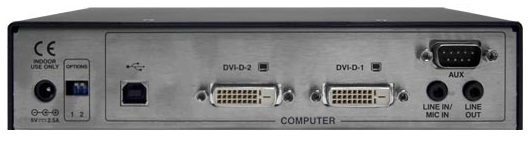

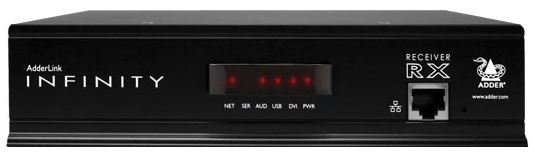

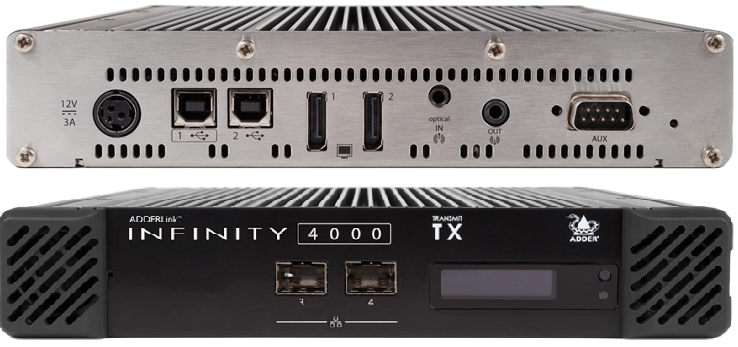

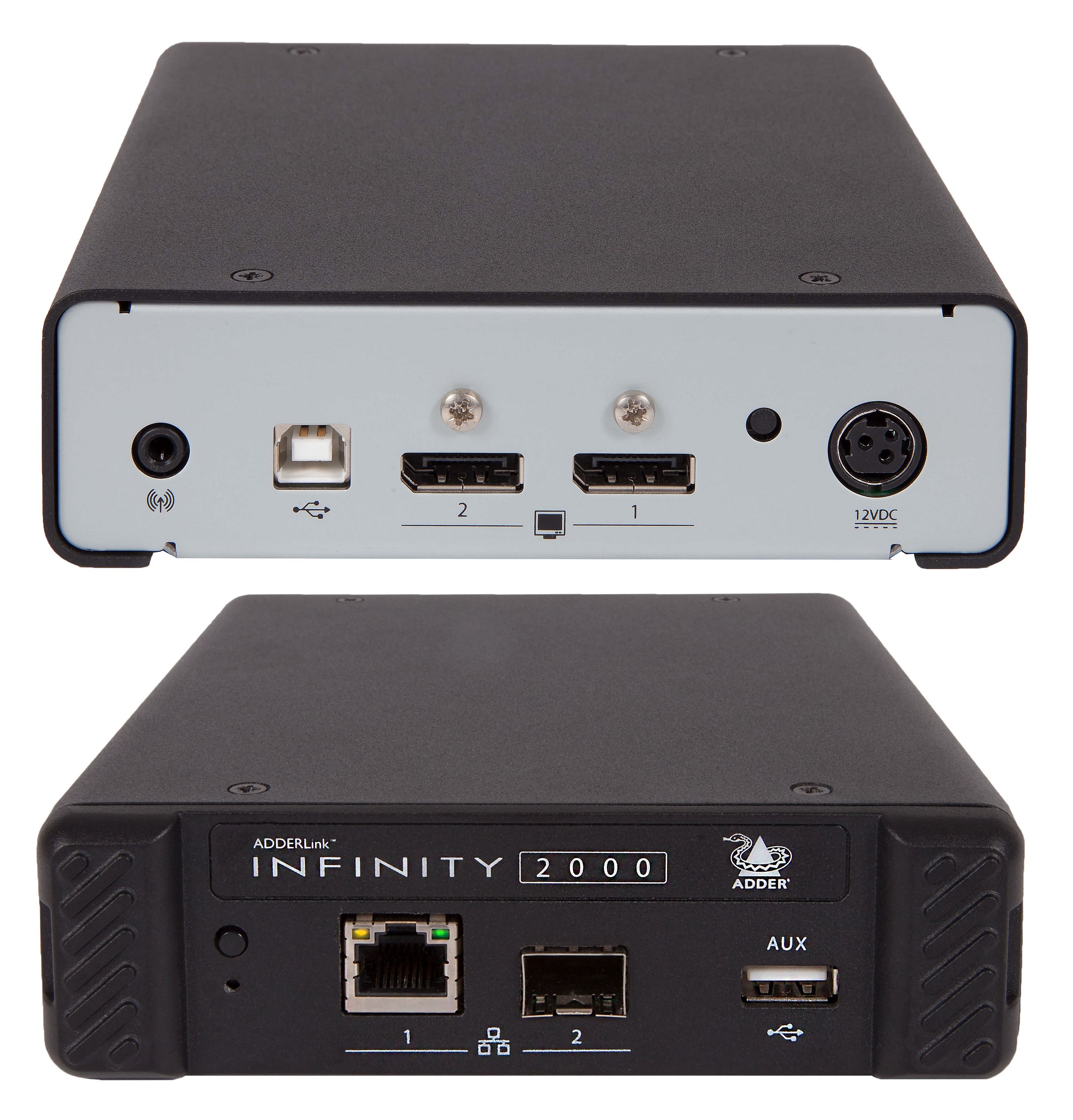

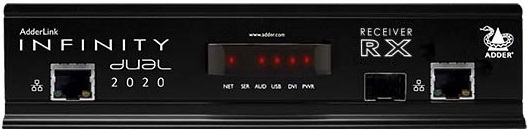

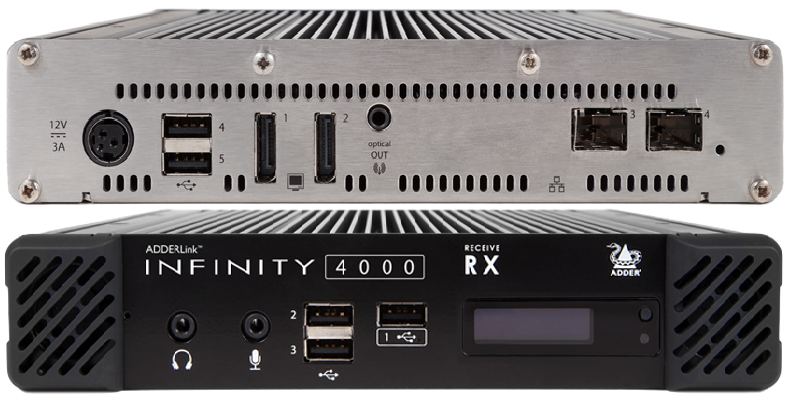

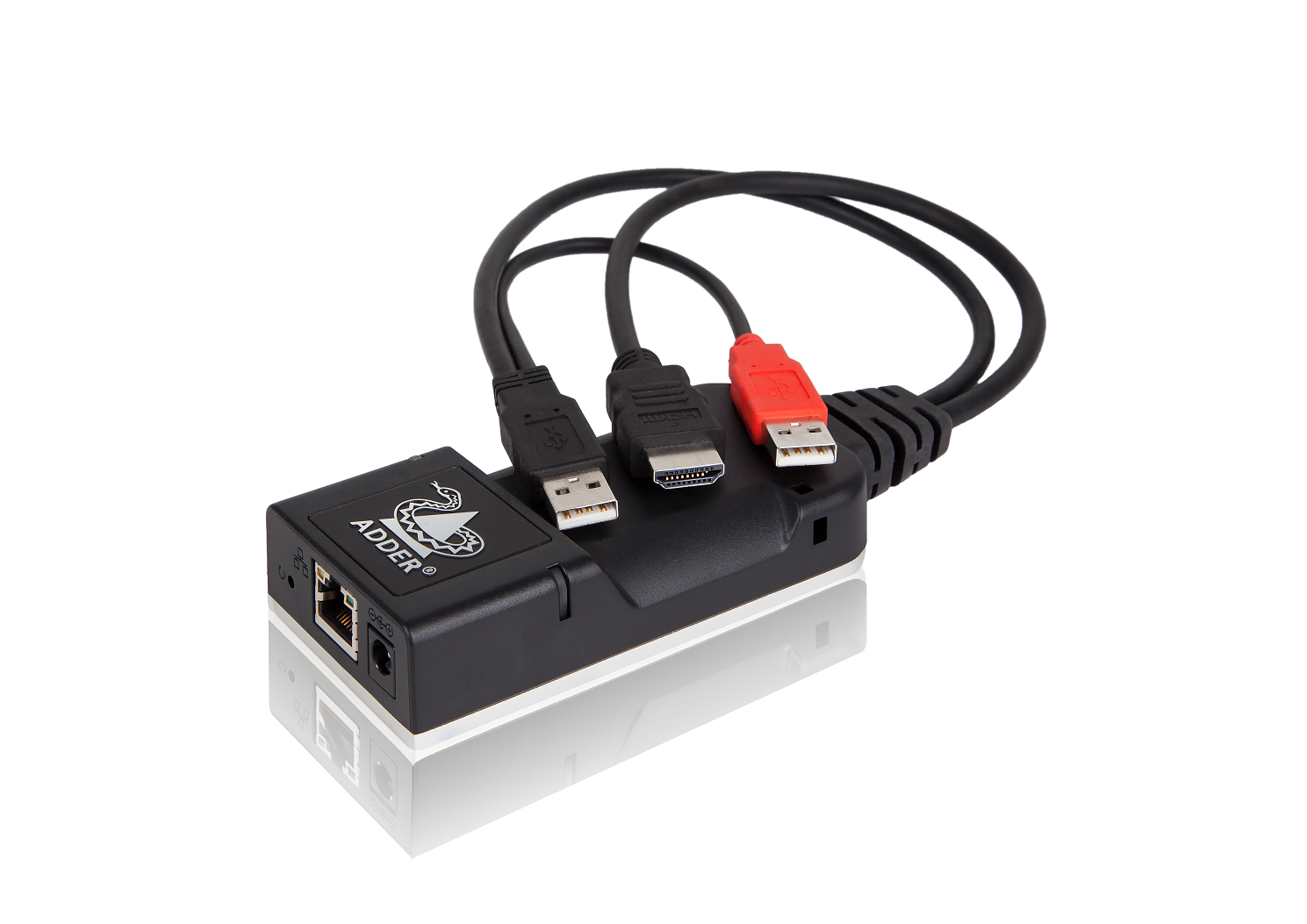

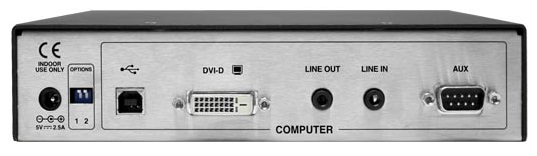

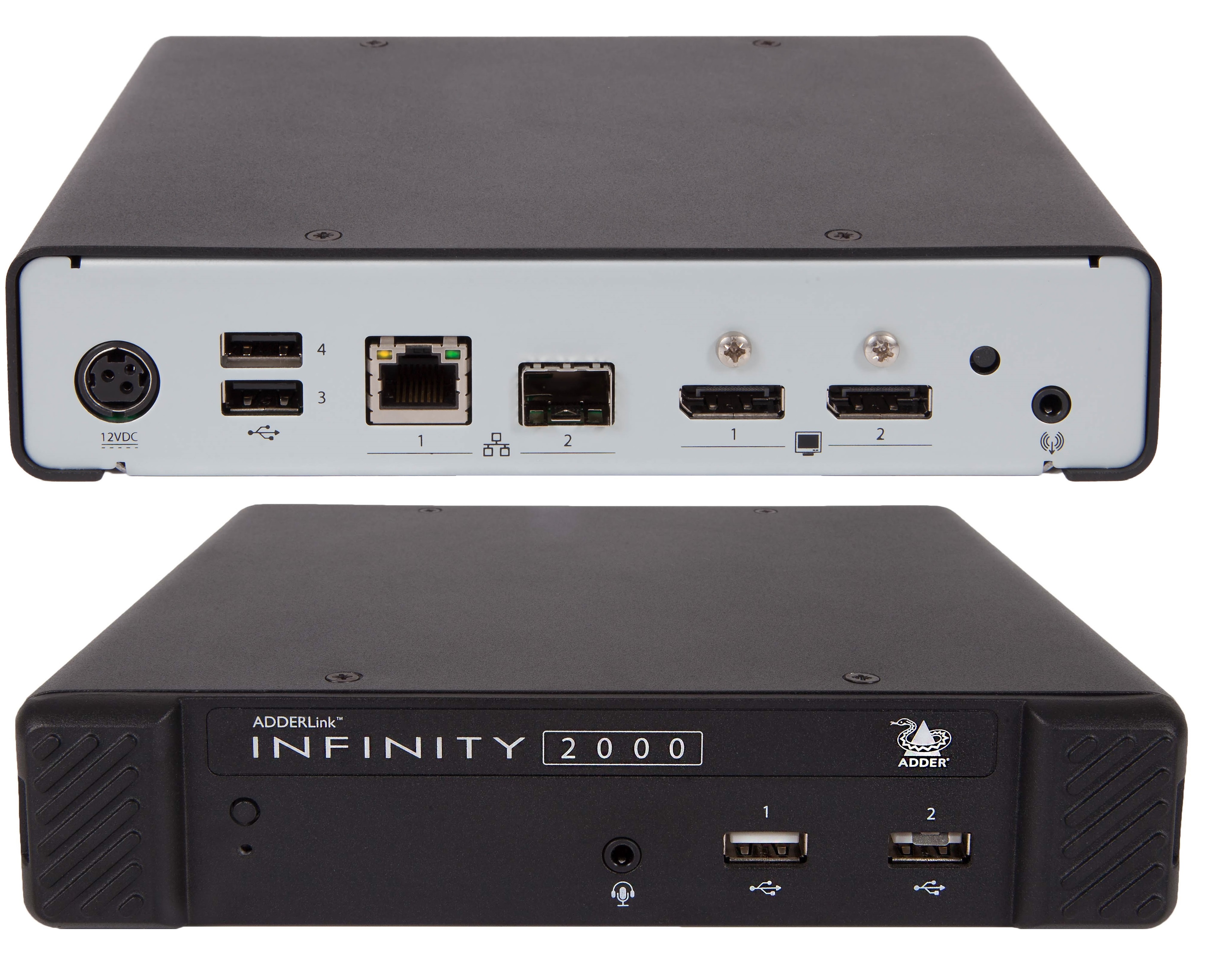

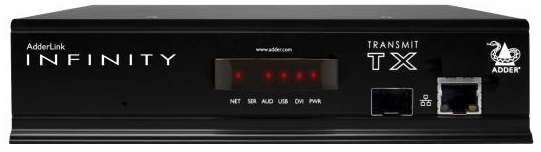

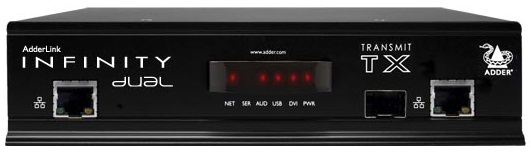

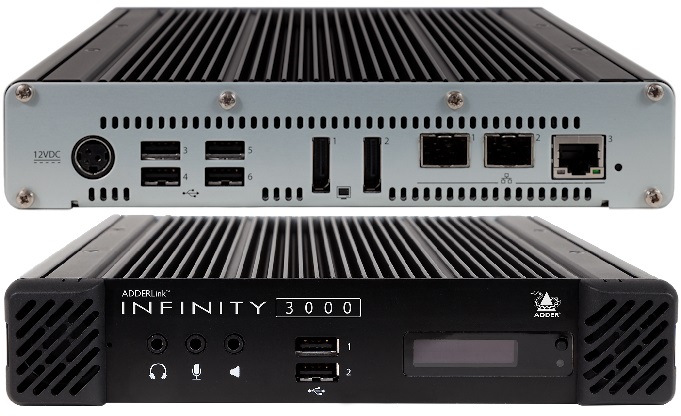

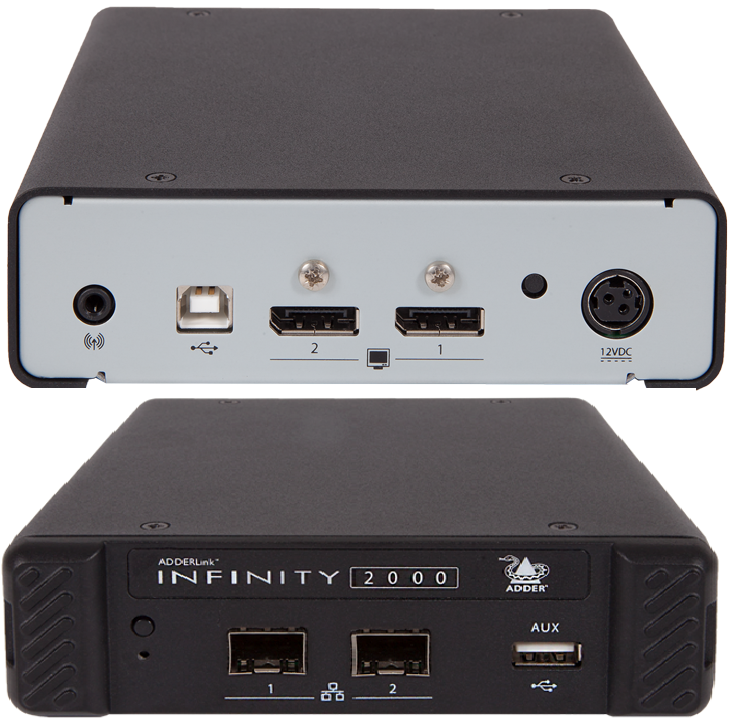

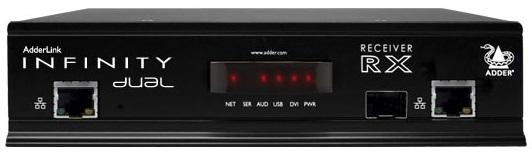

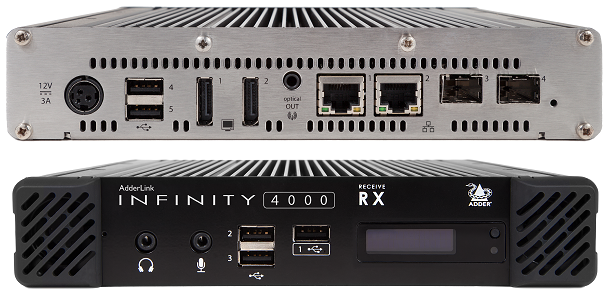

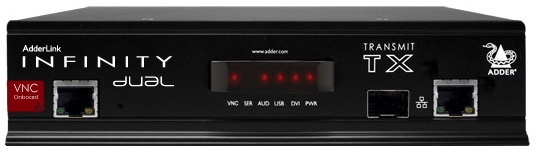

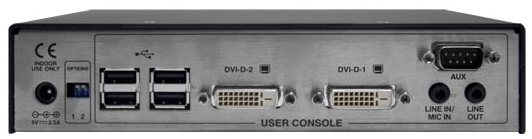

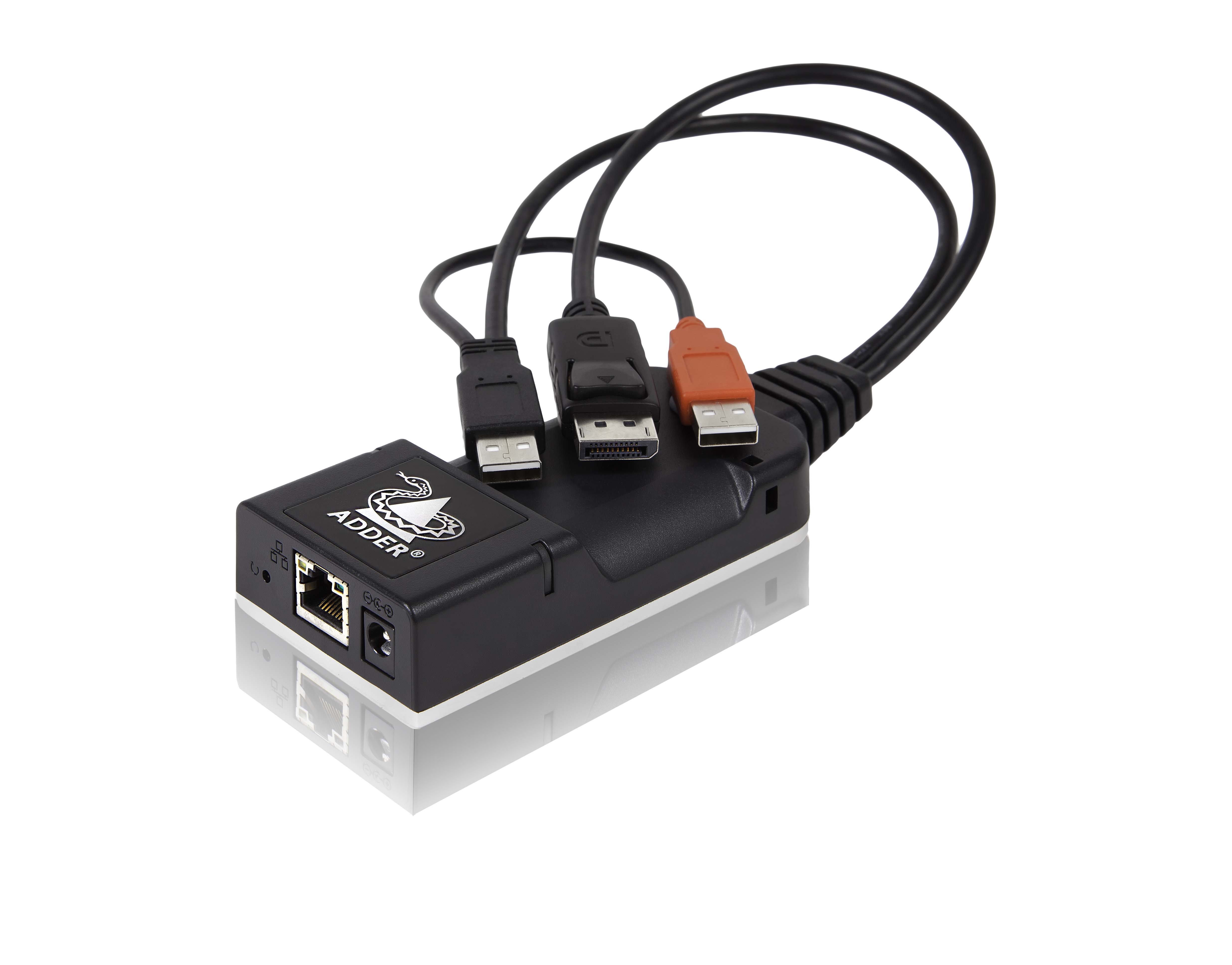

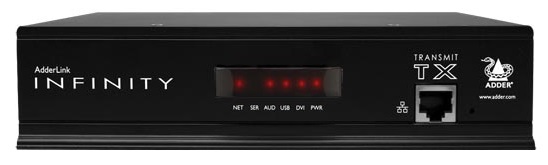

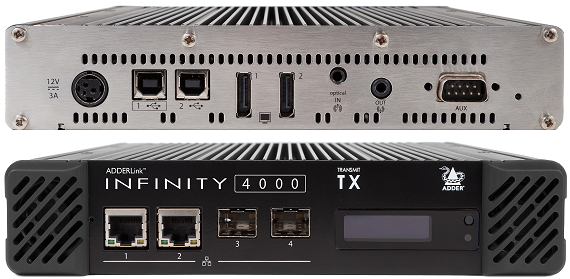

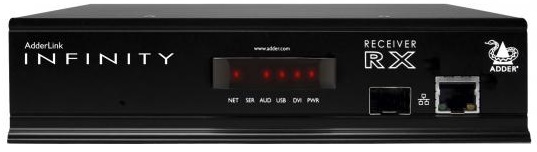

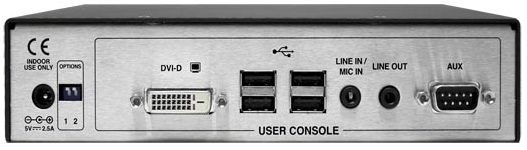

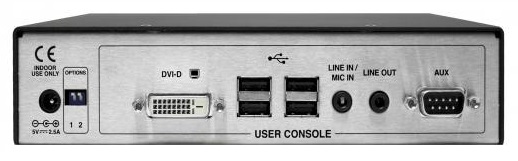

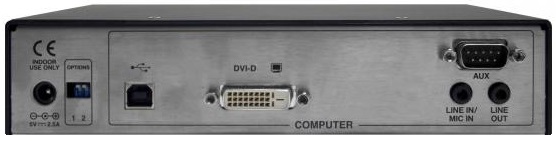

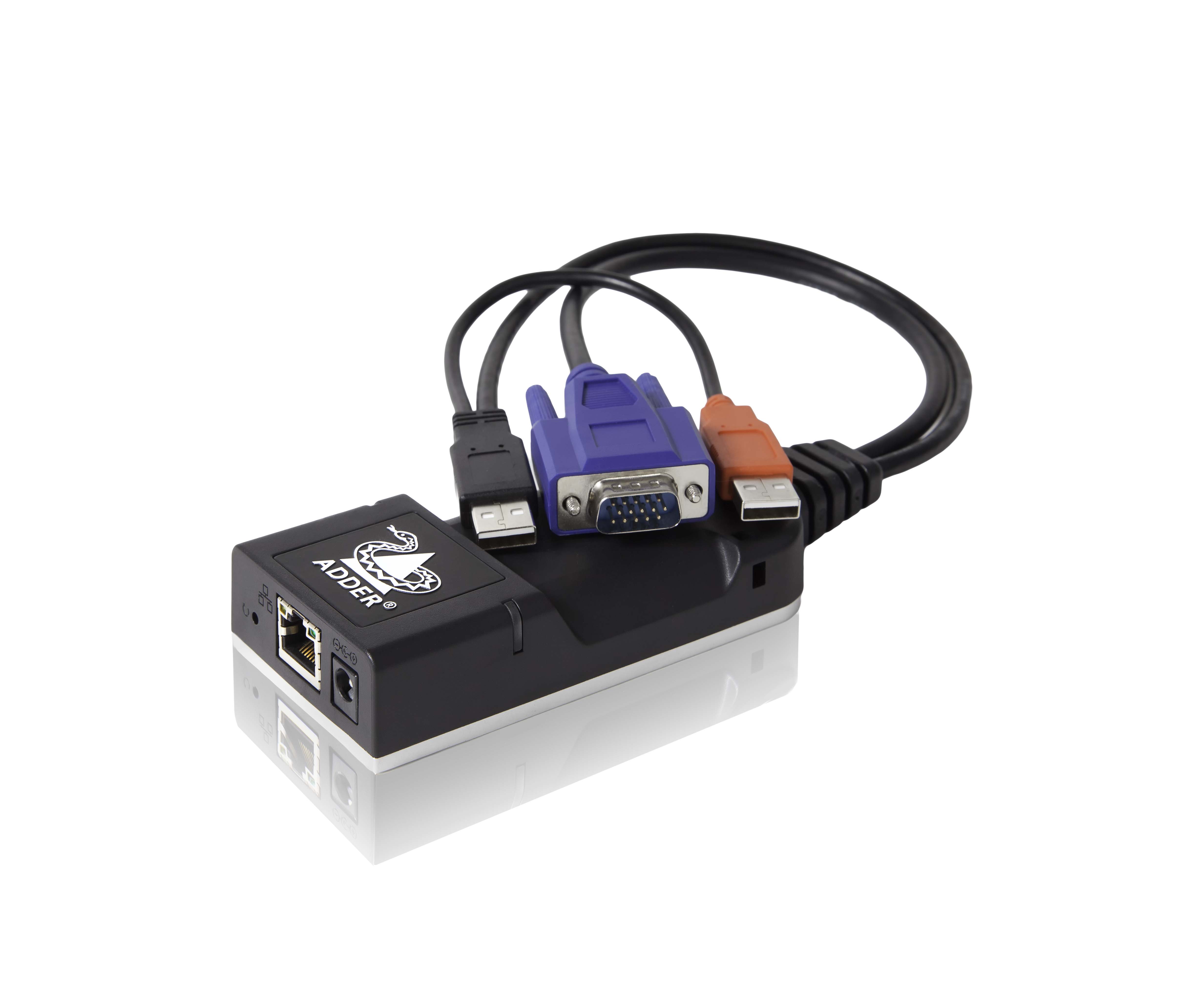

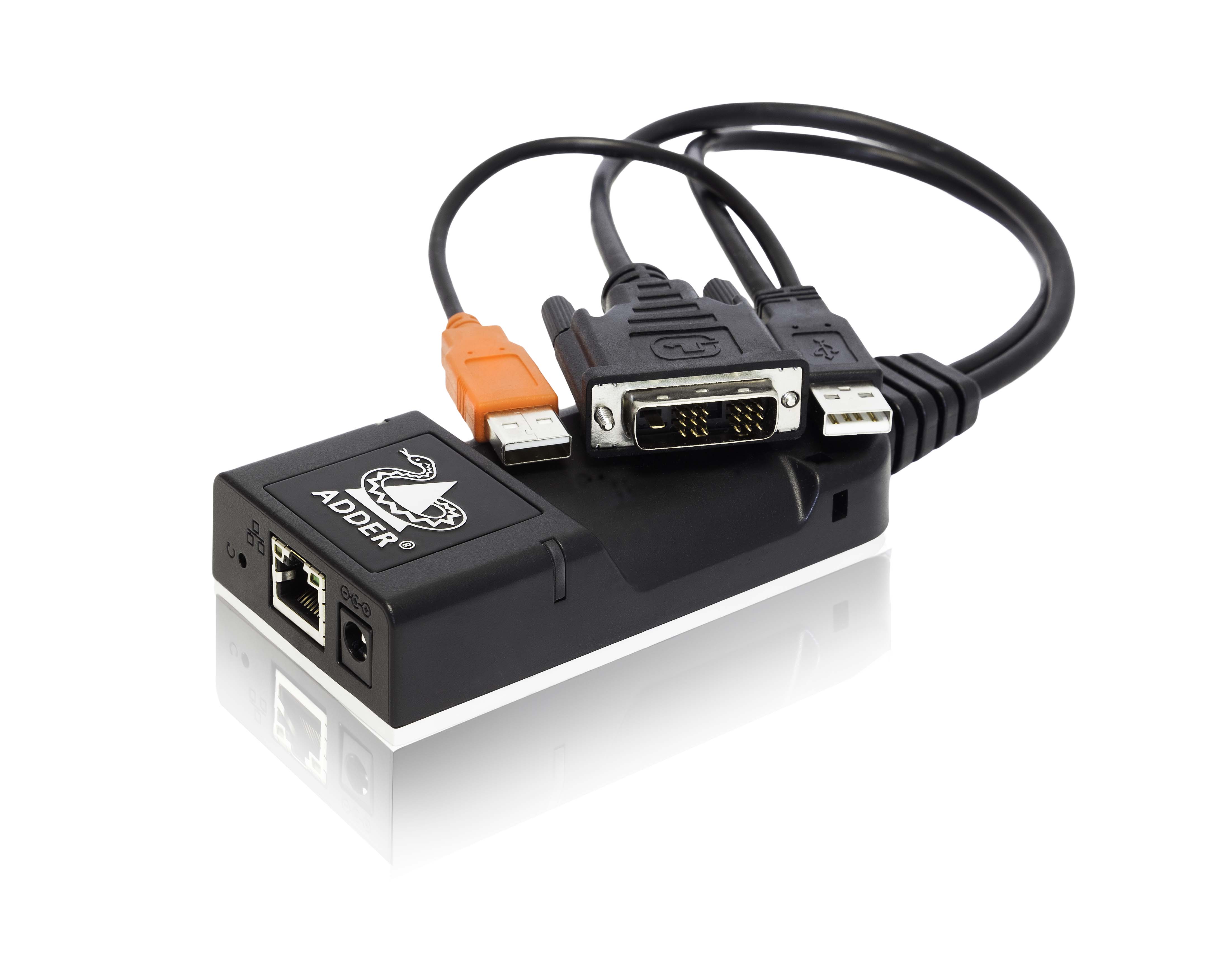

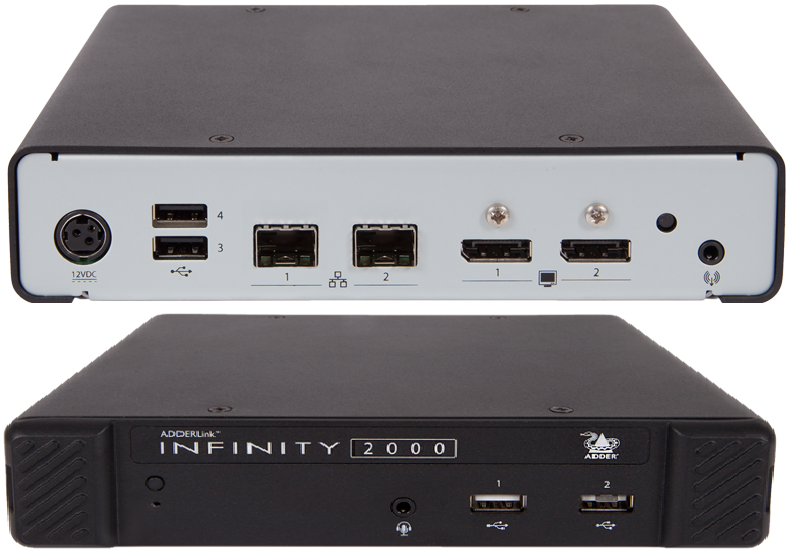

Part Codes ALIF1000R600px Alif Rear Rx Lid 600px Alif Front Rx Lid , ALIF1000T600px Alif Rear Tx Lid 600px Alif Front Tx Lid ALIF1002RAlif1002 Rear Rx Lid Alif1002 Front Rx Lid , ALIF1002TAlif1002 Tx Rear Lid Alif1002 Front Tx Lid ALIF2000R600px Alifdual Rear Rx Lid 0 600px Alifdual Front Rx Lid , ALIF2002T600px Alifdual Rear Tx Lid 0 600px Alifdual Front Tx Lid ALIF2020R600px Alifdual Rear Rx Lid 0 600px Alifdual 2020 Rx Front , ALIF2020T600px Alifdual Rear Tx Lid 0 600px Alifdual Tx 2020 Front ALIF2112T600px Alifdual Rear Tx Lid 0 600px Alifdual Front Tx Lid VNC ALIF100T-DVIAlif100t Dvi , ALIF100T-DPAlif100t Dp , ALIF100T-VGAAlif100t Vga ALIF4021RALIF4000RX , ALIF4021TALIF4000TX ALIF3000R
ALIF3000R
Type TX/RX TX/RX TX/RX TX/RX TX TX TX/RX RX
Video Heads 1 1 2 2 2 1 2 2
DVI&DP Single Link Single Link 2x Single Link or 1x Dual Link Single Link 2x Single Link or 1x Dual Link Single Link 2x DP 2x DP
Max. Resolution 1920x1200 1920x1200 2560x1600 1920x1200 2560x1600 1920x1200 5120x2880 2560x1600
Management Port No No Yes Yes Yes No No No
SFP / Teaming No Yes Yes Yes Yes No Yes Yes
VNC No No No No Yes No No No
USB Version 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Ports 4 4 4 4 4 0 4 6
RS232 Yes Yes Yes Yes Yes No Yes Yes

 Note

The ALIF1000 have been discontinued. The replacement for this product is the ALIF1002.
