ALIF: Default IP Addresses | Adder Support Wiki

Receiver and Transmitter

Models: ALIF1000T/R, ALIF1002T/R, ALIF2000R, ALIF2002T, ALIF2020T/R, ALIF2112T

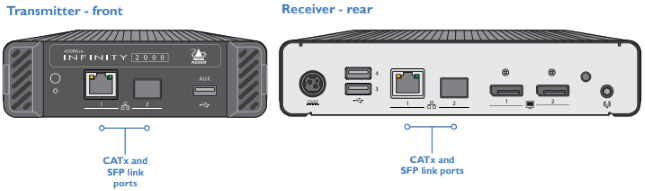

Infinity EndpointDirectConnect6

A new or factory reset endpoint are automatically assigned one of the following default IP addresses.

Model	CATX Port	SFP Port	Management Port
Transmitter(TX)	169.254.1.33	169.254.1.43	192.168.1.42
Receiver(RX)	169.254.1.32	169.254.1.42	192.168.1.42

Models: ALIF100T, ALIF101T, ALIF102T

DirectAccess ALIF100T

Model	CATX Port
Transmitter(TX)	169.254.1.33

Models: ALIF1102R, ALIF1102T

ALIF1102 Network Ports

Model	CATX Port	SFP Port
Transmitter(TX)	169.254.1.33	169.254.1.43
Receiver(RX)	169.254.1.32	169.254.1.42

Models: ALIF2102R, ALIF2102T

ALIF2102 Network Ports

Model	CATX Port	SFP Port
Transmitter(TX)	169.254.1.33	169.254.1.43
Receiver(RX)	169.254.1.32	169.254.1.42

Models: ALIF2122R, ALIF2122T

ALIF2122a Network Ports

Model	SFP Port 1	SFP Port 2
Transmitter(TX)	169.254.1.33	169.254.1.43
Receiver(RX)	169.254.1.32	169.254.1.42

Model: ALIF3000R

ALIF3000 Rear Networl Ports

Model	Port 1 SFP	Port 2 SFP	RJ45
Receiver(RX)	169.254.1.32	169.254.1.42	DHCP/Static Assigned

Models: ALIF4021T/R

Important

You can only use the 1Gb Copper OR the SFP network ports. You can not use them simultaneously. If an SFP module is inserted, the unit will assume that you wish to use the port, even if the SFP module is not connected to a cable,

ALIF4021TX NetworkPorts ALIF4021RX NetworkPorts

A new or factory reset endpoint are automatically assigned one of the following default IP addresses.

Model	Port 1 Copper	Port 2 Copper	OR	Port 3 SFP	Port 4 SFP
Transmitter(TX)	169.254.1.33	169.254.1.43	OR	169.254.1.33	169.254.1.43
Receiver(RX)	169.254.1.32	169.254.1.42	OR	169.254.1.32	169.254.1.42

Models: ALIF4001T/R

ALIF4001TX SFP ALIF4001RX SFP

A new or factory reset endpoint are automatically assigned one of the following default IP addresses.

Model	Port 3 SFP	Port 4 SFP
Transmitter(TX)	169.254.1.33	169.254.1.43
Receiver(RX)	169.254.1.32	169.254.1.42

AIM Manager

Model: AIM-ALIF

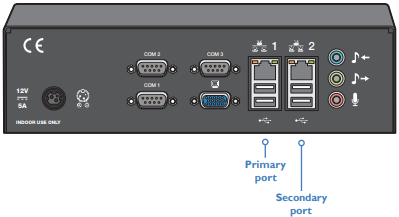

AIM ALIF Network Ports

Model: AIM-24

AIM IP Address

Model: ASP-001

AIM 24 Network Ports

Default Unconfigured IP on the Primary Port

AIM Server: 169.254.1.3

After AIM's IP address is configured

Once an AIM controller's network settings have been configured, in addition to the IP address that has been assigned, an AIM will be available on the following link-local address(s). This is useful to know if you have forgotten which IP address you assigned to it.

Primary: 169.254.1.2
Backup(s): From 169.254.1.4 onwards, e.g. 6, 8, 10, 12, etc depending on how many you have.

The transmitters and receivers that are under AIM's control will automatically be assigned an IP address from the IP Pool address range.
