This procedure covers Accessing the Dashboard of the XD612, XD614, XD641, and XD642.
To access the dashboard
1. Using your console keyboard attached to the receiver module, press (and release) the Ctrl key three times in quick succession (either of the keyboard’s Ctrl keys can be used). In response, the three keyboard indicators will all-flash, once per second.
2. Press the numeric key 1 located above the main section of the keyboard (not the numeric keypad)

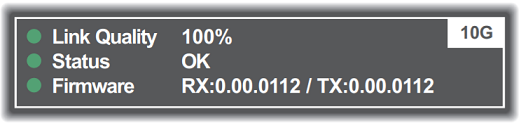

The Dashboard will be displayed, similar to this:
The example above shows a configuration that is working correctly.

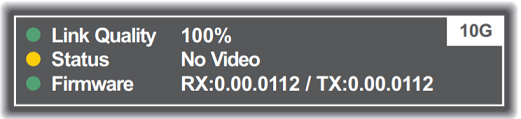

If the communication link was working correctly, but the video signal was lost, it might
report as follows:

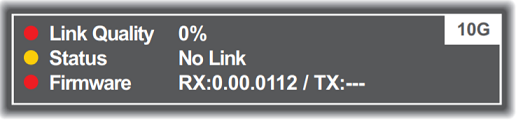

If the communication link was missing then the dashboard would report the issue
similar to this:
The color of the Dashboard’s Link Quality indicator matches the front panel LNK indicator:
• Red 0-25% quality
• Amber 25-50% quality
• Yellow 50-75% quality
• Green 75-100% quality
To exit the dashboard
• Press (and release) the Ctrl key three times in quick succession and then press the numeric key I located above the main section of the keyboard (not the numeric keypad).
