The AIM v6.x software delivers a new fresh On-Screen Display (OSD) Designed for clarity and speed, it provides a responsive, easy-to-navigate interface that keeps users focused, productive and in complete control of their desktop experience.
Important
While core functionality remains available, the navigation experience on ADDERLink INFINITY receivers with DVI connectivity present the AIM 6 OSD differently to other receiver models

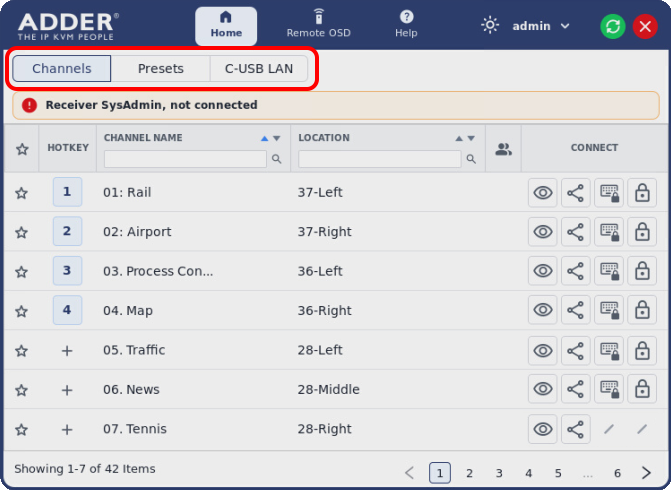

ALIF1100R, ALIF2100R, ALIF3000R & ALIF4000R
To switch views, click on the discrete Channels, Presets and C-USB LAN tabs at the top.
Connection Modes
Video-Only: Allows users only to view the video output, the USB channel is denied.
Shared: Allows users to control a system in conjunction with other users.
Exclusive: Grants exclusive control to one user while all others can simultaneously view and hear, but not control, the output.
Private: Allows a user to gain private access to a system, while locking out all others.

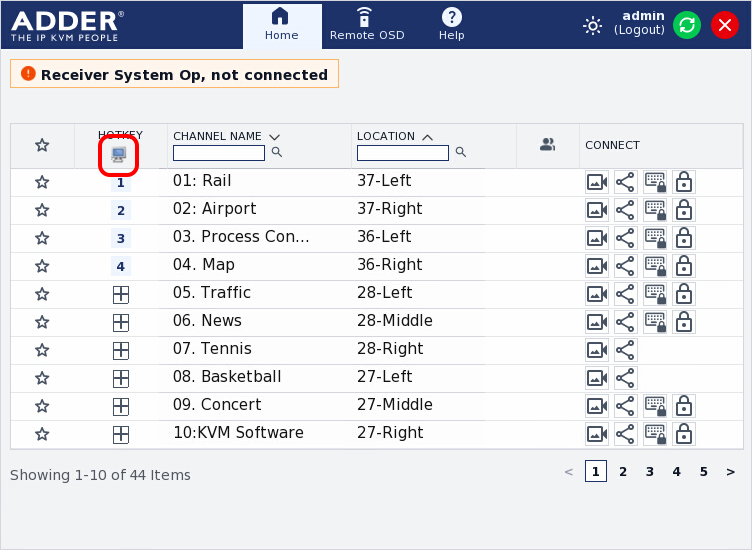

ALIF1002R, ALIF2000R, ALIF2020R (DVI Models)
The way in which you switch between Channels, Presets and the C-USB LAN (if available), is simlar to the previous AIM software versions.
Clicking on the icon in the Hotkey column enables you to toggle between:-
Currently showing only Channels
Currently showing only Presets
Currently showing only C-USB LAN (if available)
Connection Modes
Video-Only: Allows users only to view the video output, the USB channel is denied.
Shared: Allows users to control a system in conjunction with other users.
Exclusive: Grants exclusive control to one user while all others can simultaneously view and hear, but not control, the output.
Private: Allows a user to gain private access to a system, while locking out all others.
