ALIF: Active Directory LDAP(S)

 Note

This guide will refer to LDAP and LDAP over SSL collectively as LDAP(S). It is important to remember that they are separate protocols within Windows Server. LDAP and LDAP over SSL operate independently of each other and are not required to be installed at the same time.

Adding LDAP Roles and Features

How to import Active Directory Users and Groups to AIM

This page is a guide on how to import Active Directory Users and Groups to AIM using your Domain Controller and LDAP filters.

 Note

To use this guide you must already have the required Domain Controller components running on your network.

Importing Organisational Unit's without filters.

We can directly import the group pictured below without using any LDAP filters.

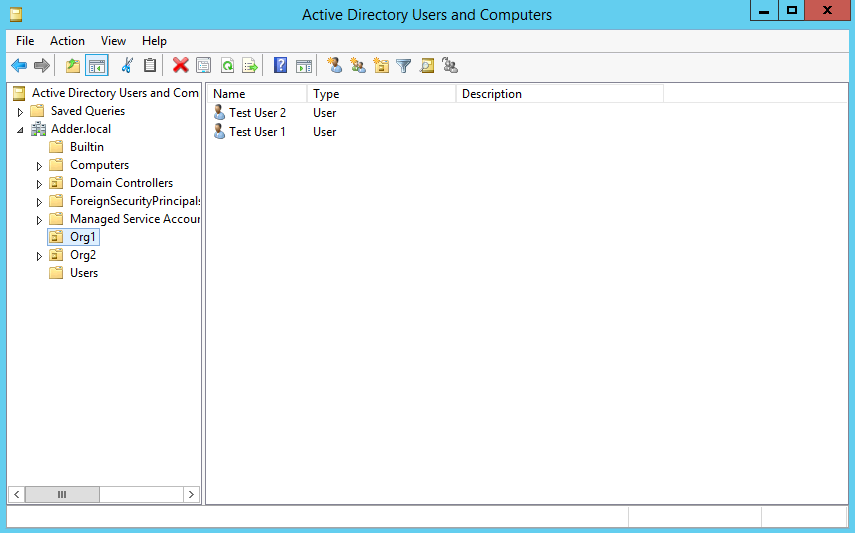

Active Directory Test OU


Step 1

Log into the AIM Web Browser Interface.
Once logged in, navigate to :- USERS tab > Active Directory > Settings.

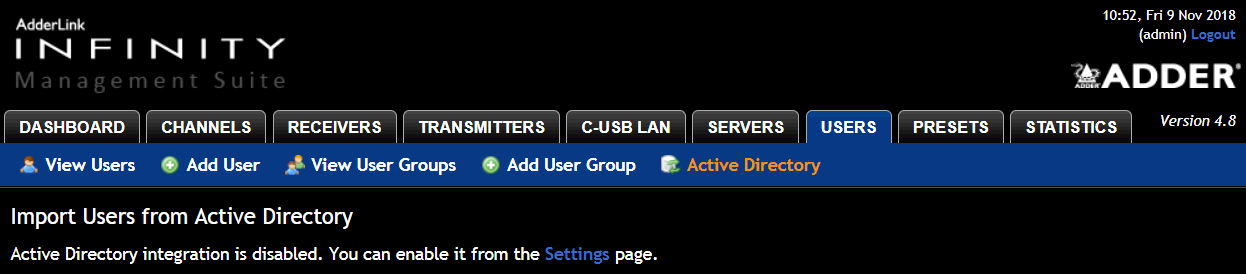

Turning On Active Directory AIM


Step 2

Enable Active Directory on AIM. You can find a guide for this on our wiki: Enabling Active Directory
The example below shows a network with a single Domain Controller. If you wish to connect an LDAPS server, use ldaps://<DOMAIN/IP>.

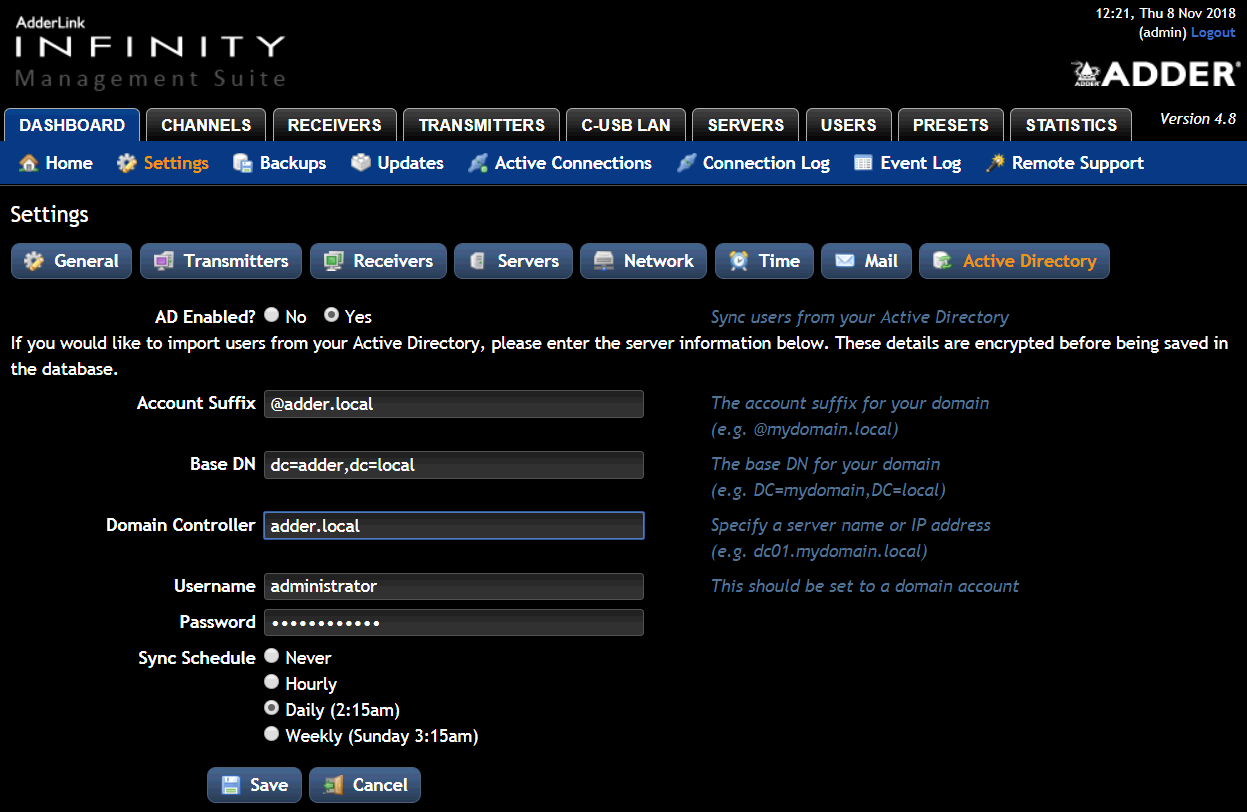

AD AIM Settings Page



Step 3

Again, navigate to:- USERS > Active Directory.
From here we can specify whether to import only the users from within an OU, or include users contained in groups within the OU.
Tick the required boxes.

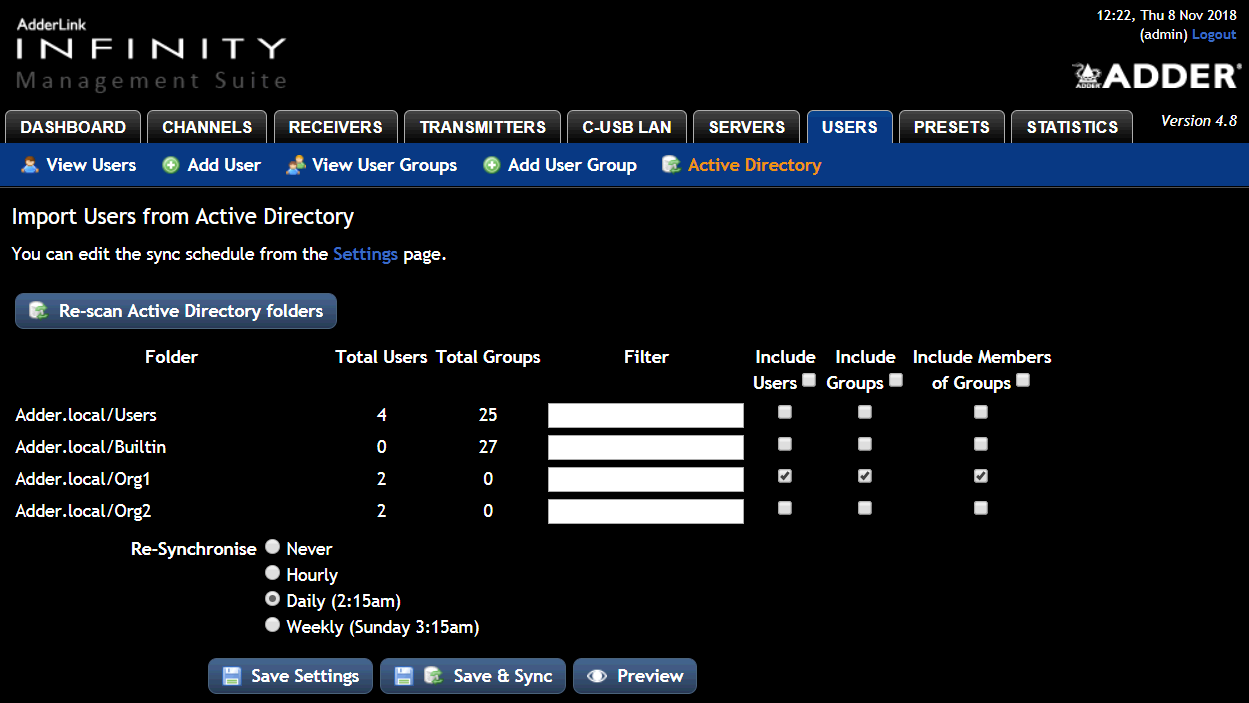

Org 1 Import


Step 4

Click Preview to review the users to be imported.
Green + symbols indicate users that will be imported. Red - symbols indicate users that will be ignored upon importation.

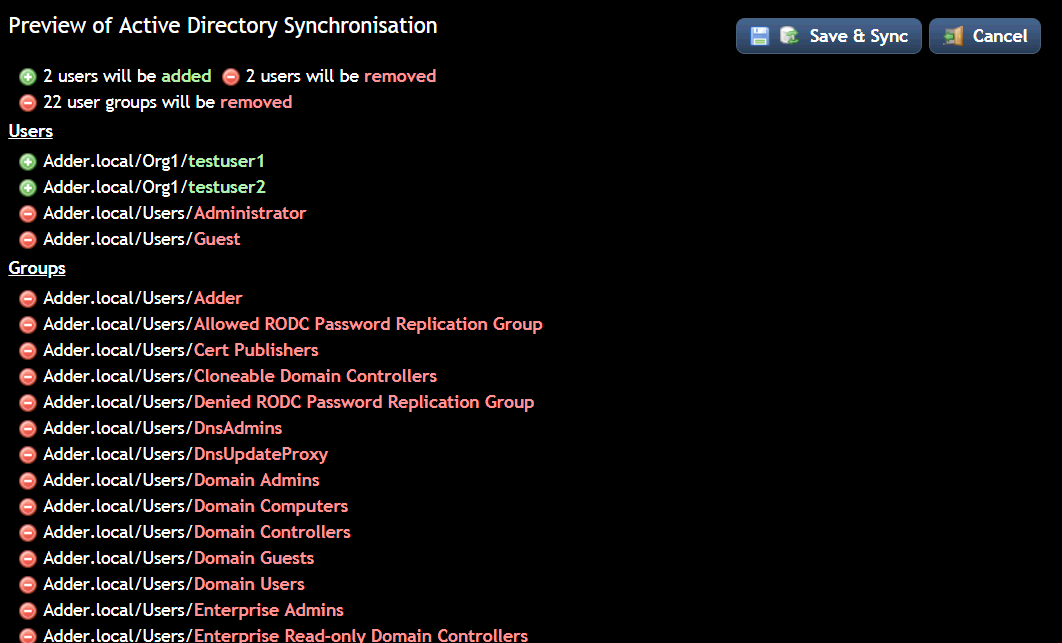

Org 1 Import Preview

After review, click Save & Sync to import users. Alternatively, click Cancel to return to the previous page and edit entries.


Importing users from multiple Organisational Unit's using LDAP filters.

Microsoft provide a guide to using the LDAP Syntax, which can be found at the following link. LDAP Filters Syntax

In this example we have created a group called Adder KVM Group under the default Users OU.

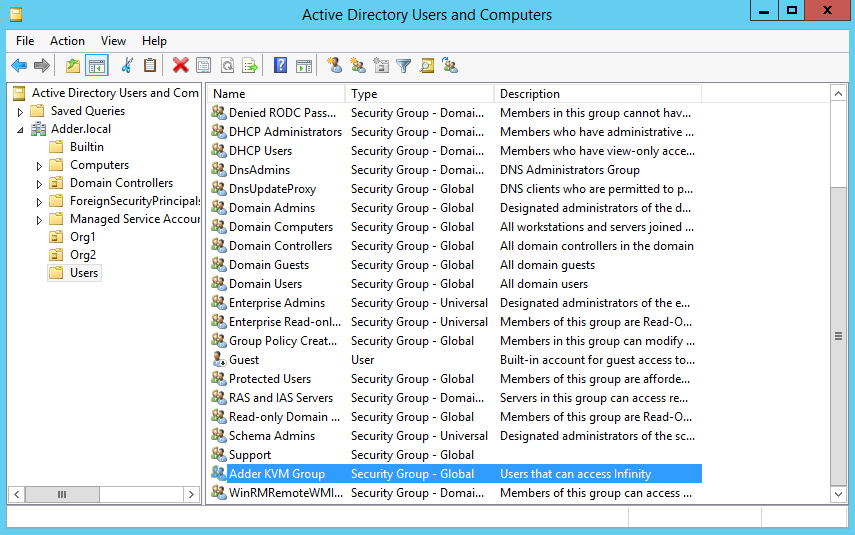

KVM Group

The group contains users from two OU's, Org1 and Org2.

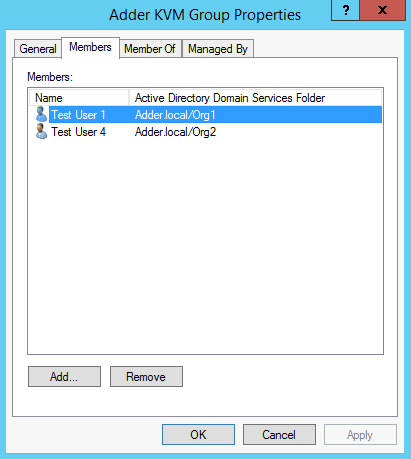

KVM Group Properties


Step 5

Following on from Step 2 in the section above, navigate to :- USERS > Active Directory.

Here we are going to import the group Adder KVM Group which falls under the OU Users.
To import only the group required we are going to use an LDAP filter.

(&(objectCategory=group)(cn=adder kvm group))

Import Group Filter


Step 6

Click Preview to review the users to be imported.
Green + symbols indicate users that will be imported. Red - symbols indicate users that will be ignored upon importation.

We can now see one user from Org1 and one from Org 2 have been filtered for import.

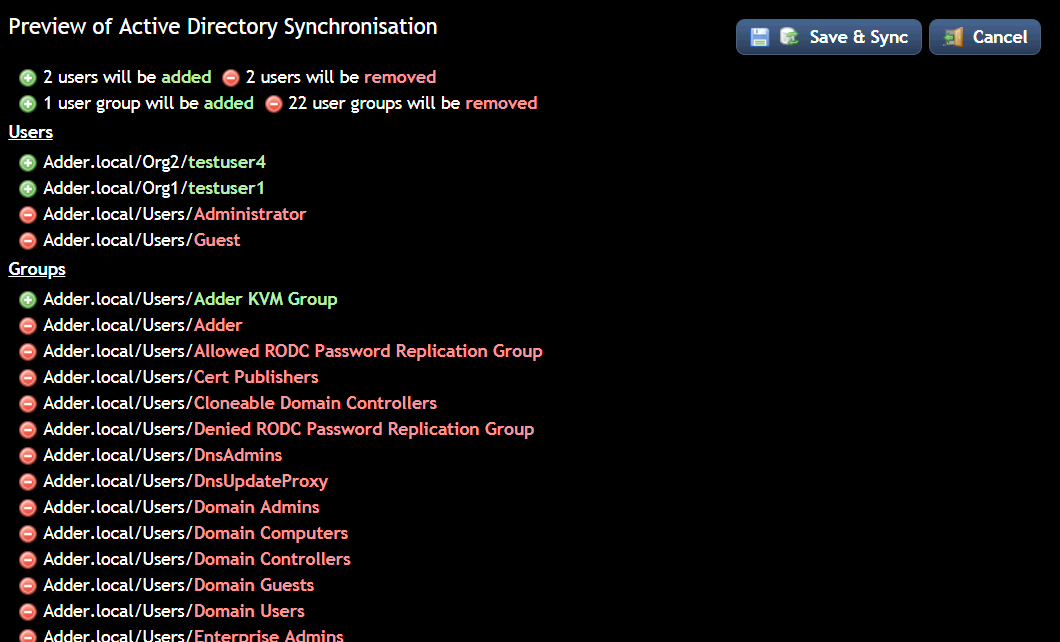

Import Group Filter Preview
After review, click Save & Sync to import users.

 Note

If you have run into any problems while following these steps, ensure you contact support at adder.com
